Special gas springs Special locking Gas springs Gas springs with a double stroke


Gas spring with double stroke


Use /Employment

This gas spring is equipped with two cylinders charged at different forces which thus cover two force ranges.

These springs are mainly used on heavy flaps with large opening angles, as in such cases a low starting force and a high ending force is required.

The compression of the spring causes a jumping progression curve which adjusts much better to the flap´s power course.

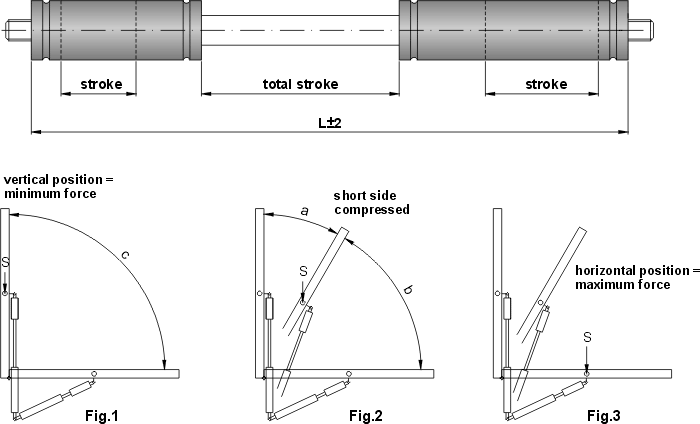

Figure 1:

In extended position only a low spring force is
required as the point of gravitiy S is located very
near to the pivot point.

Figure 2:
In this position half of the flap´s weight is effective.
The gas spring´s shorter side is compressed, the
force of the other cylinder takes effect.

Figure 3:
In horizontal position the gas spring is compressed. Depending on the flap´s weight the first cylinder is
adjusted to range “a”, the second to range “b”.
